Any[bi:n]

Any[bi:n]

Any[bi:n] IND-1000, bluetooth beacon Scanner, is designed as a robust structure that can be installed not only in ordinary living environment but also in industrial field

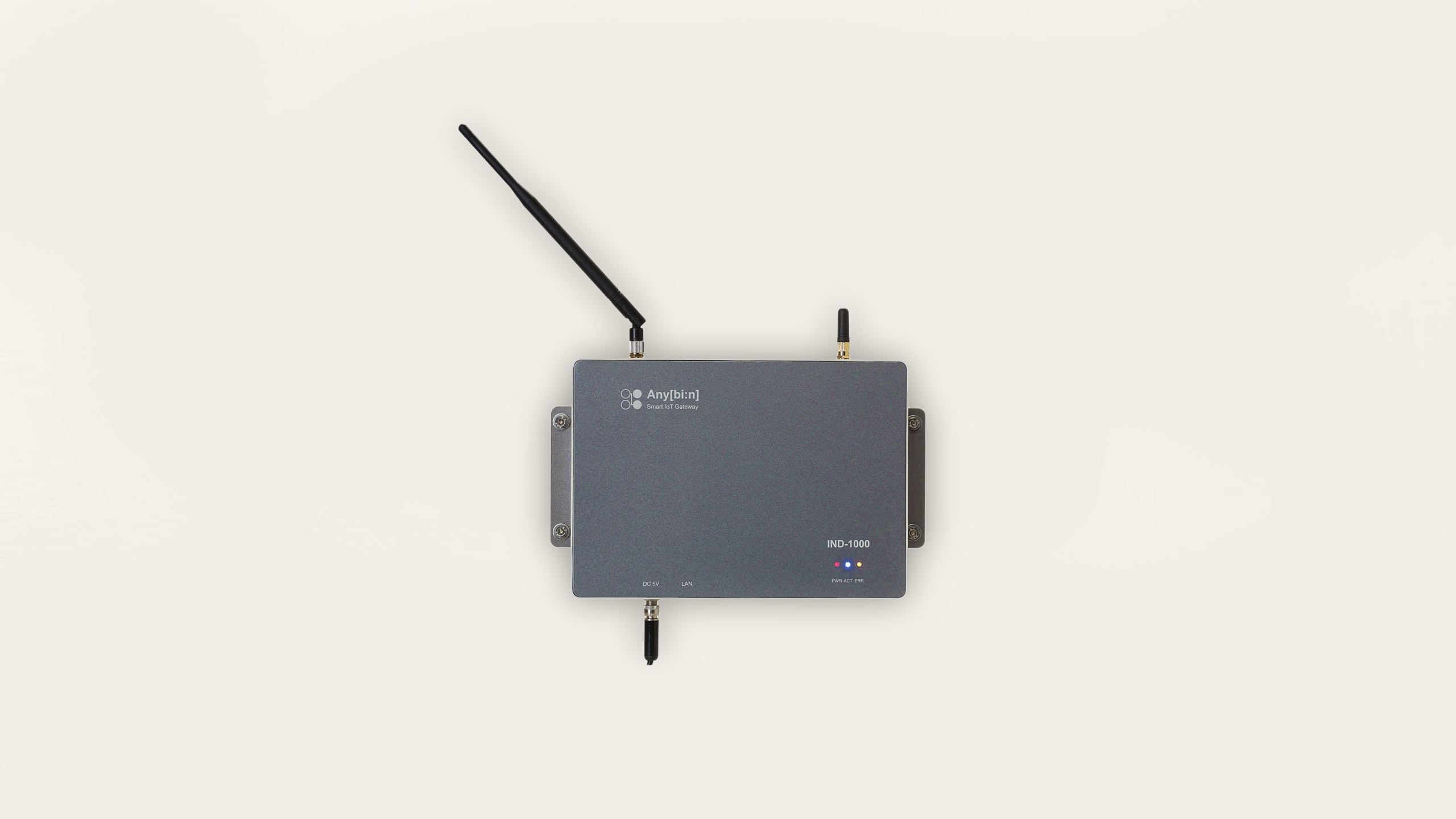

Any[bi:n] IND-1000

Any[bi:n] IND-1000, bluetooth beacon Scanner, is designed as a robust structure that can be installed not only in ordinary living environment but also in industrial field. It has been developed as a universal gateway that can cope with various wireless network protocols for IoT service.

Any [bi: n] is equipped with a middleware function that converts or filters the collected data format in addition to receiving beacon information, so it can perform simple data management function in stand-alone mode.


Product Model Any[bi:n] IND-1000
Processor Chipset ARMv7 Quad Core , 900MHz
RAM 1GB SDRAM @ 450MHz
Power Draw / voltage 1.8A @ 5A
Ethernet Port RJ45
Network Interface Optional (WiFi, LTE, Zigbee, Z-wave and etc.)
Size 210mm x 150mm x 35 mm
Weight 800g
OS Linux

Using @

Korea Expressway Corporation

Pilot project for Accident alert service in the tunnel

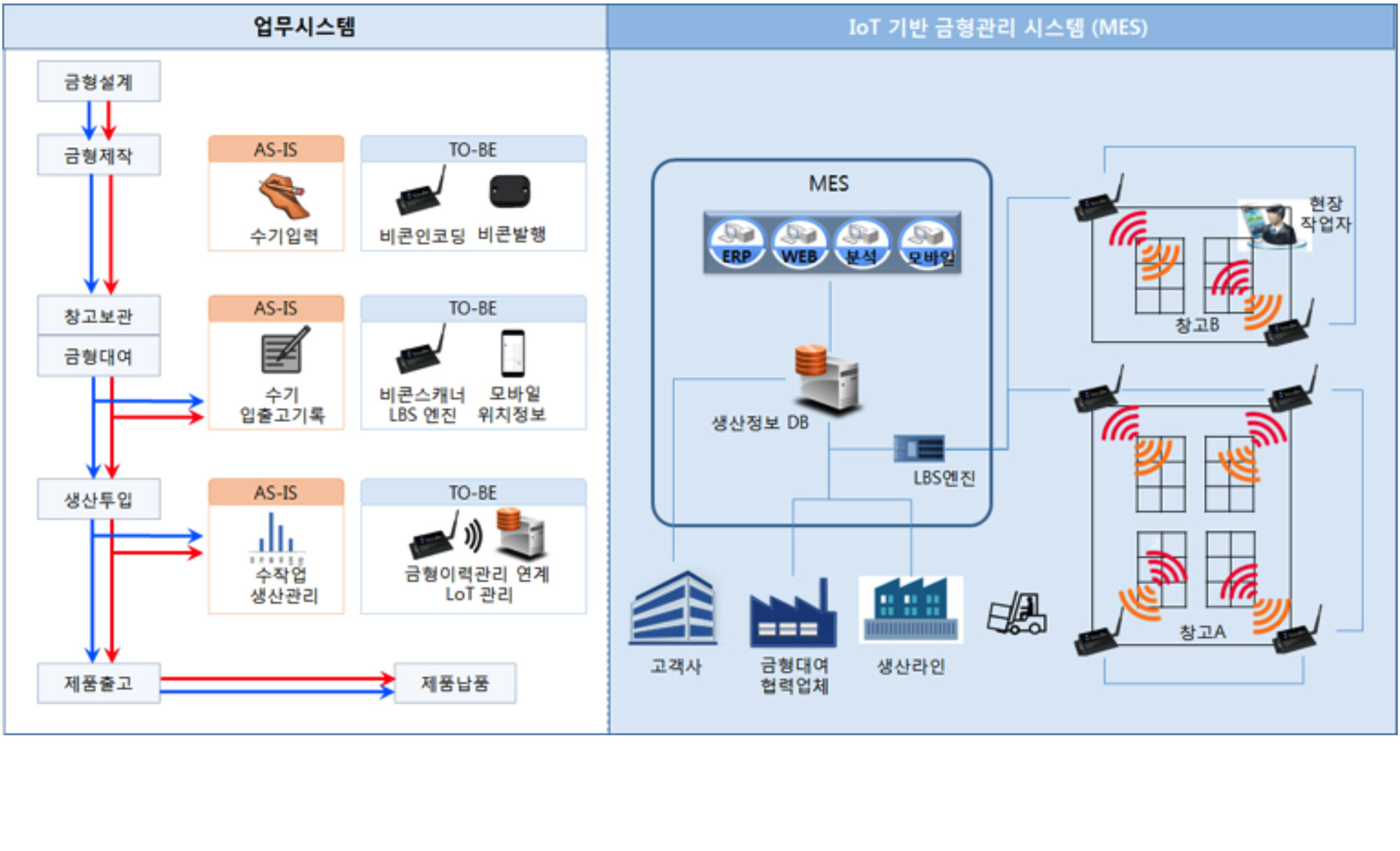

Domestic B company

mold history management service

Samsung Heavy Industries

Warehouse Parts Management Service

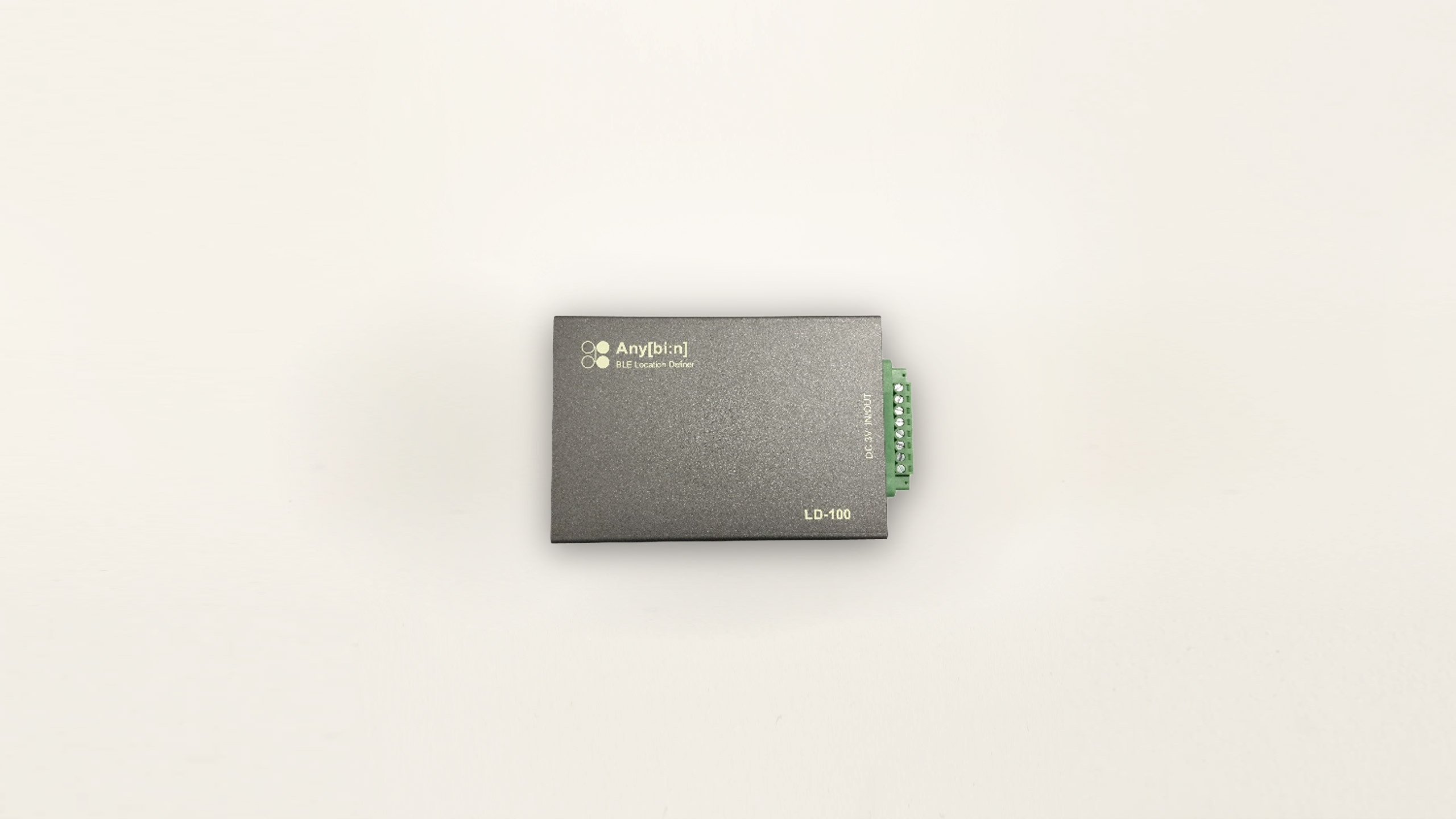

Any[bi:n] LD-100

Any[bi:n] LD-100, the near-field beacon scanner, was developed to pinpoint the location of beacons in a large number of beacons in confined areas.

The LD-100 is called as Location Definer because it reads the beacon information from nearby beacons according to the predetermined reception sensitivity and transmits it to the beacon scanner.

With Any[bi:n] LD-100, you can get accurate information for the location of beacons, such as equipment inside or the specific point of storage racks.


Product Model Any [bi:n] LD-100
Air Interface Bluetooth V4.0 (2.4GHz)
Advertising Frequency CH37 2402MHz, CH38 2426MHz, CH39 2408MHz
Transmit Power -18 ~ +8 dBm (8 steps Tx Power adjustment)
RX Sensitivity -92.5dBm
Antennas Chip Antenna
Protocol iBeacon, Eddystone, Customizing
Power Source +3VDC @ 100mA
Environmental Sealing IP54
Operating Temperature -20℃ ~ +50℃
Humidity 5% to 95%, non-condensing
Weight 230g



Using @

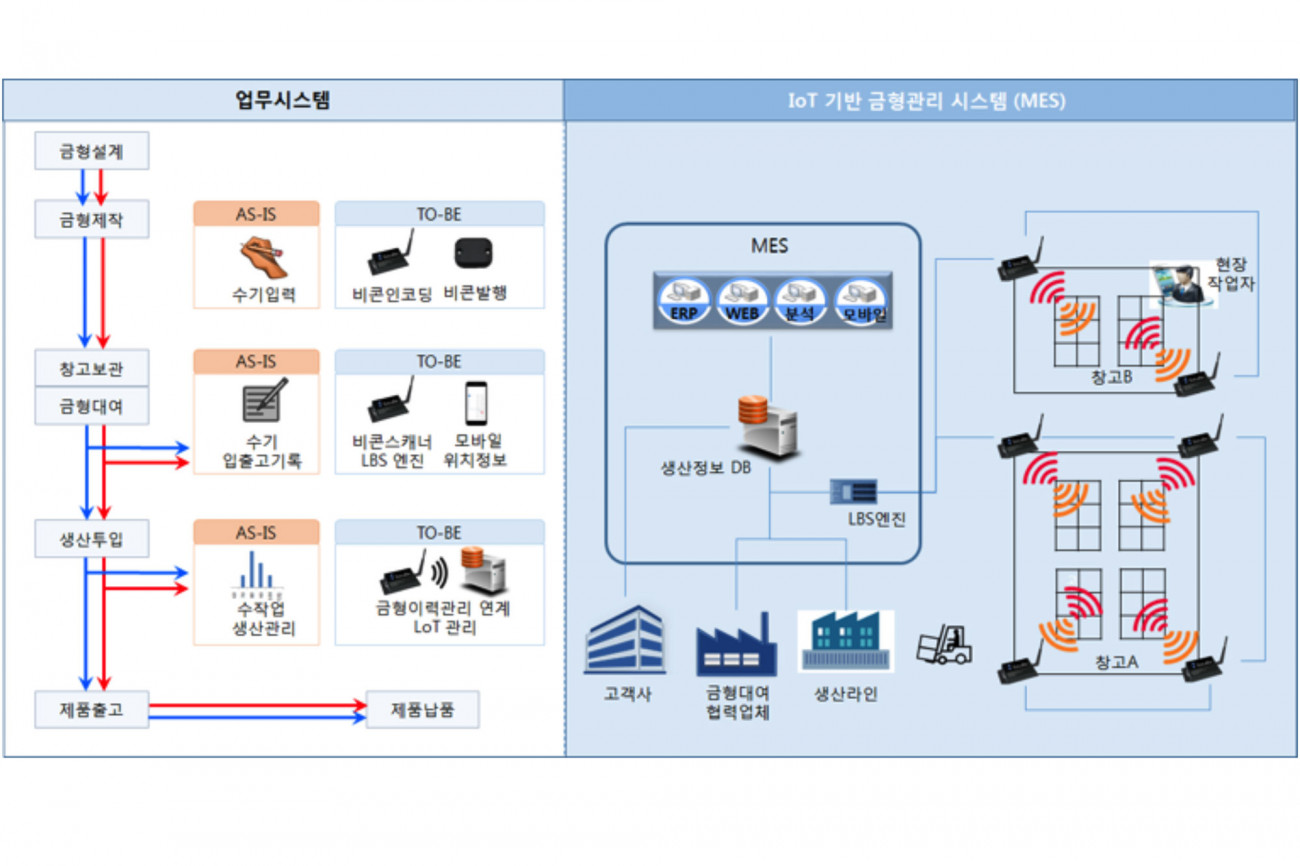

Domestic B company

Mold production input management service
