Green[bi:n], the commercial model for Bluetooth beacon, was developed based on an ultra-low power circuit design

Green[bi:n]

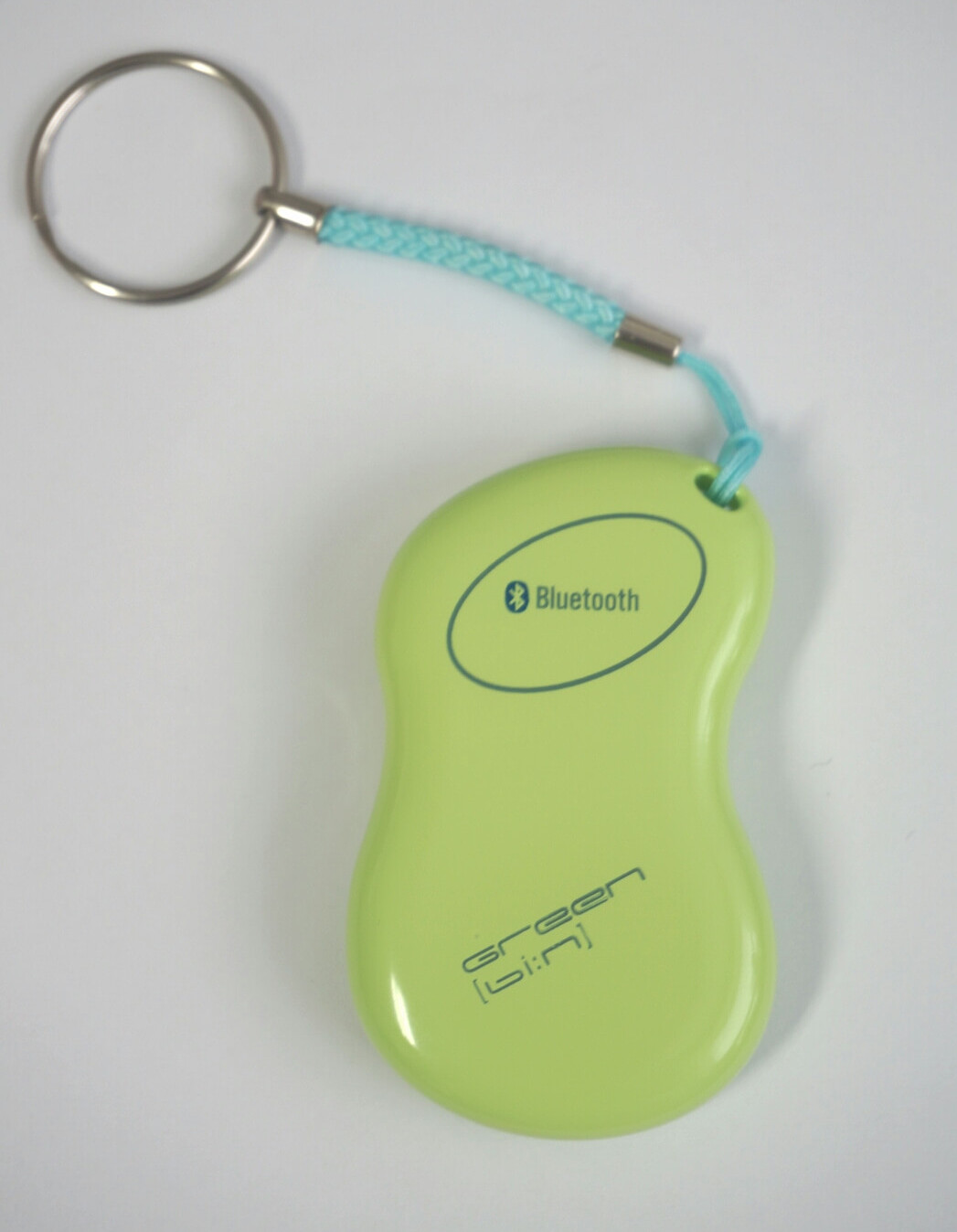

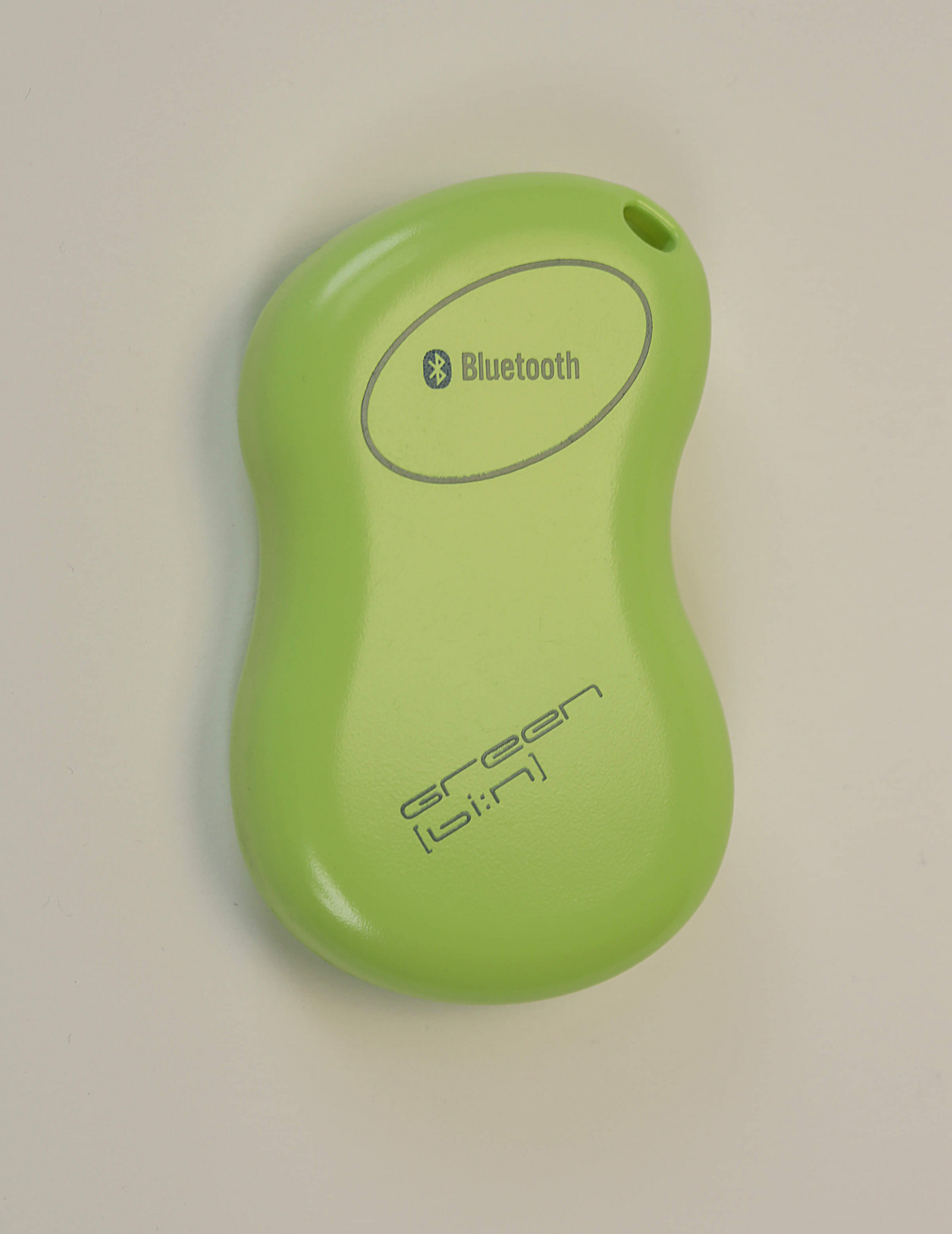

Green[bi:n], the commercial model for Bluetooth beacon, was developed based on an ultra-low power circuit design and can be used for 14 months if the CR2450 600mA lithium battery is used to generate a signal in 1 second increments. You can replace the battery and reuse it.

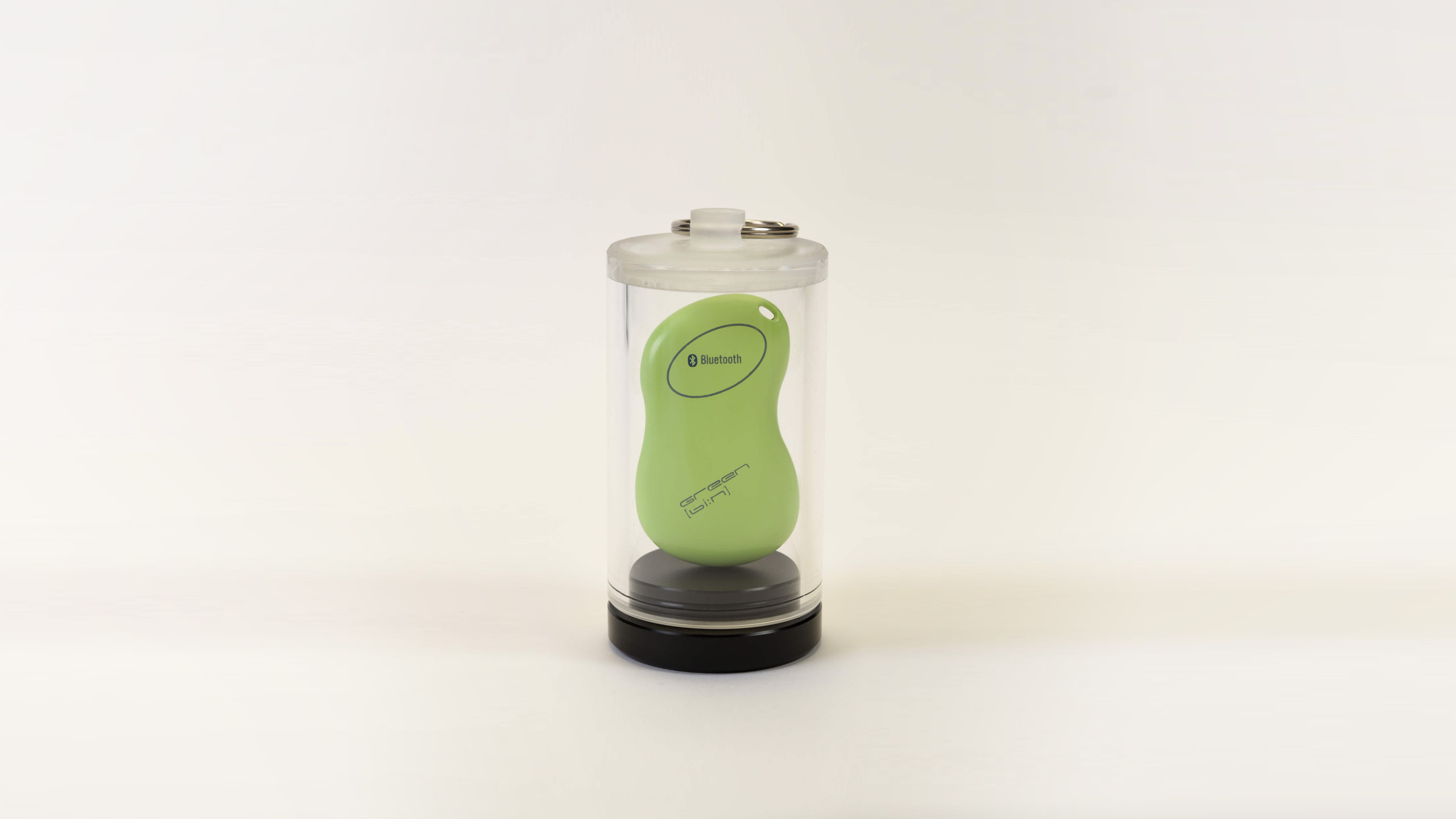

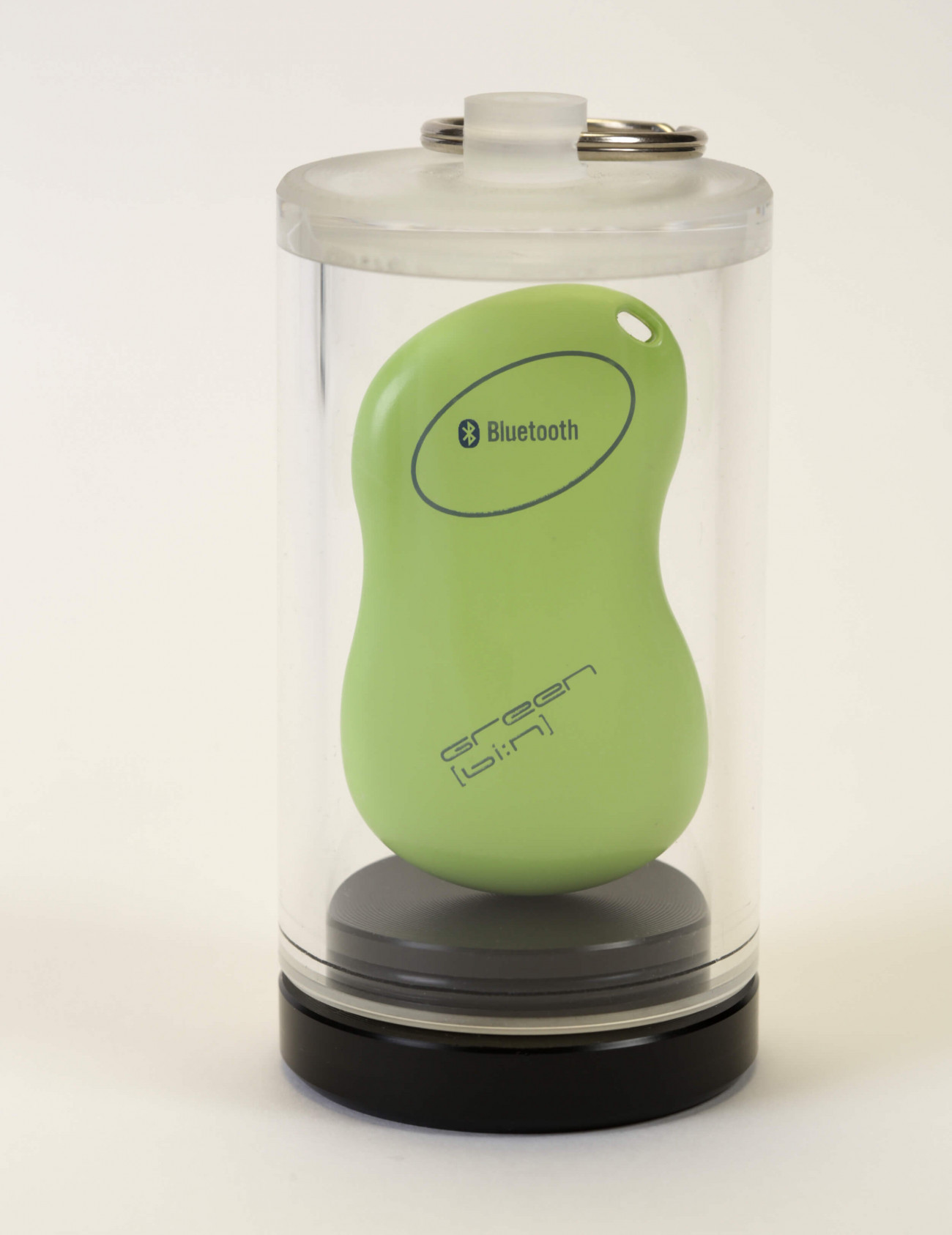

Green [bi: n] was developed primarily for indoor use, but it can also be used outdoors using a waterproof outer case.

Product Model	Green [bi:n]
Air Interface	Bluetooth V4.0 (2.4GHz), iBeacon, Eddystone
Advertising Frequency	CH37 2402MHz, CH38 2426MHz, CH39 2408MHz
Transmit Power	-18 ~ +8 dBm (8 steps Tx Power adjustment)
RX Sensitivity	-92.5dBm
Antennas	Chip Antenna
External Interface	RS-232C
Power Source	+3VDC @ 30uA (CR2450), 1.2 year @ blink 1sec
Environmental Sealing	IP52
Operating Temperature	-20℃ ~ +50℃
Humidity	5% to 95%, non-condensing
Size	62 x 38 x 13 mm
Weight	20g

Using @

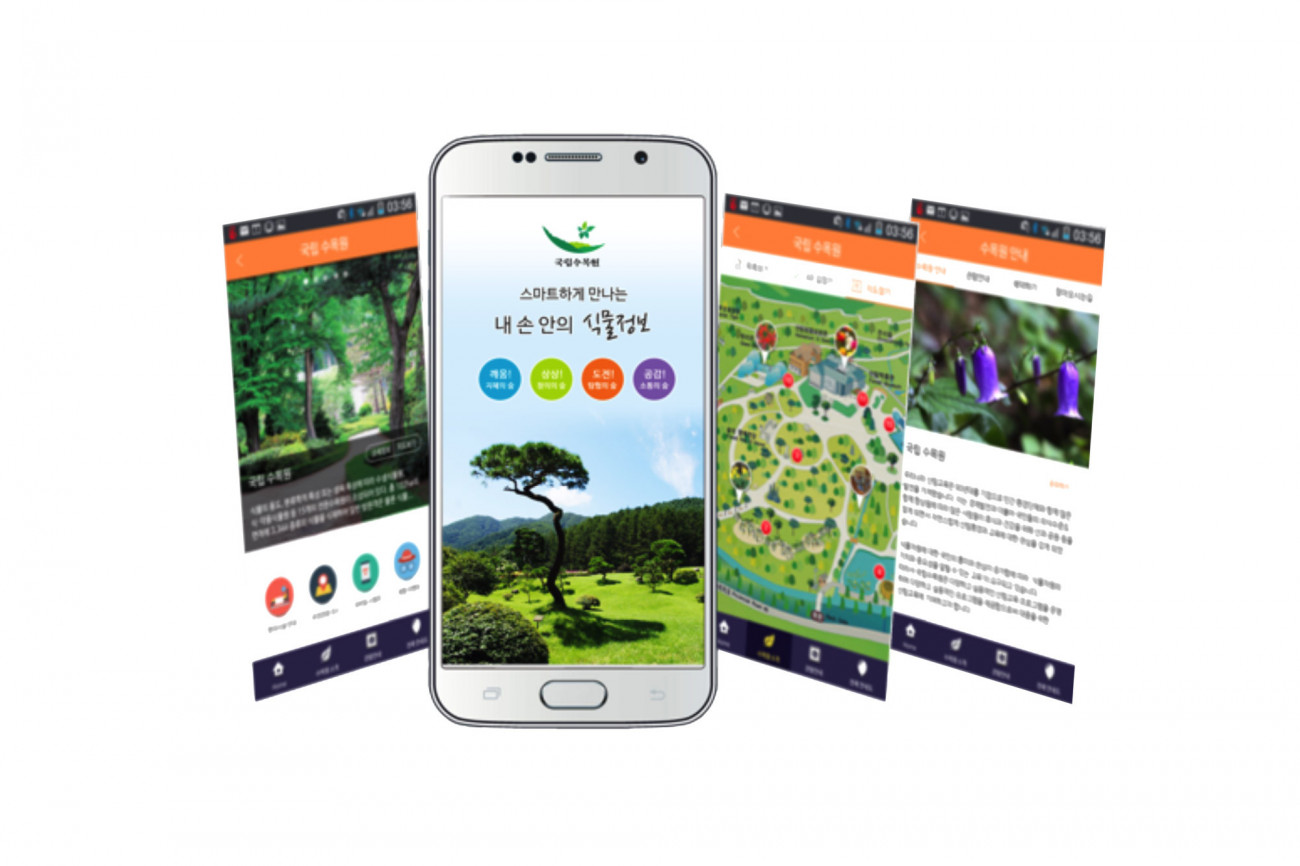

National Arboretum

Mobile living Information Service

Korea Expressway Corporation

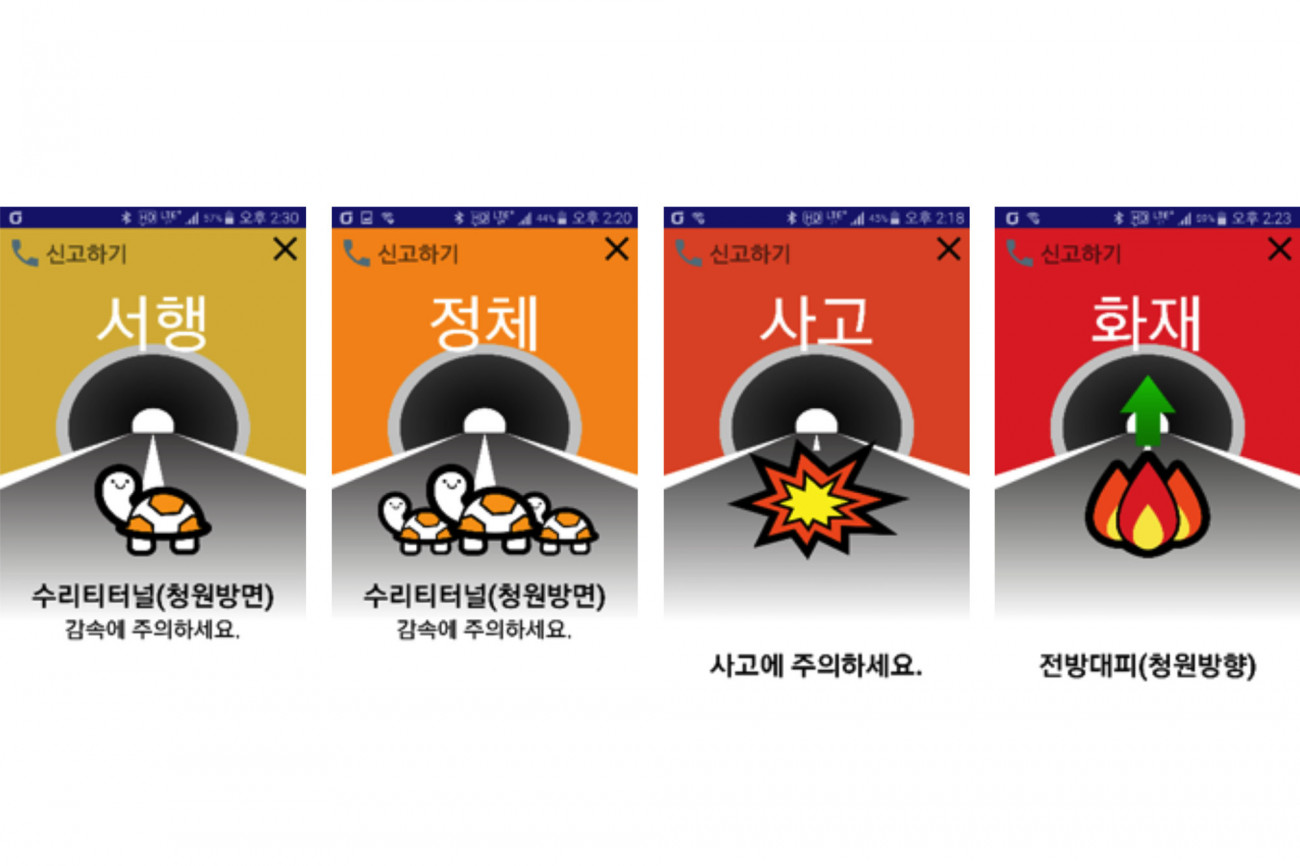

Pilot project for Accident alert service in the tunnel

Domestic A Company

Article Lease Management Service

Green[bi:n]
