Black[bi:n], the industrial beacon, has been developed in a dustproof, waterproof and chemical resistant construction to suit the harsh industrial environment

Black[bi:n]

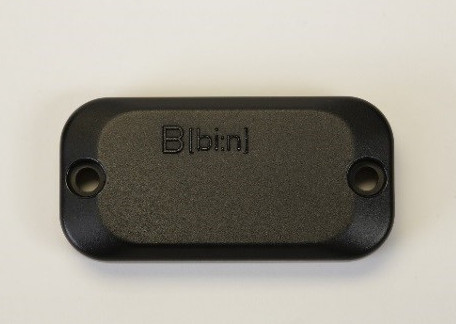

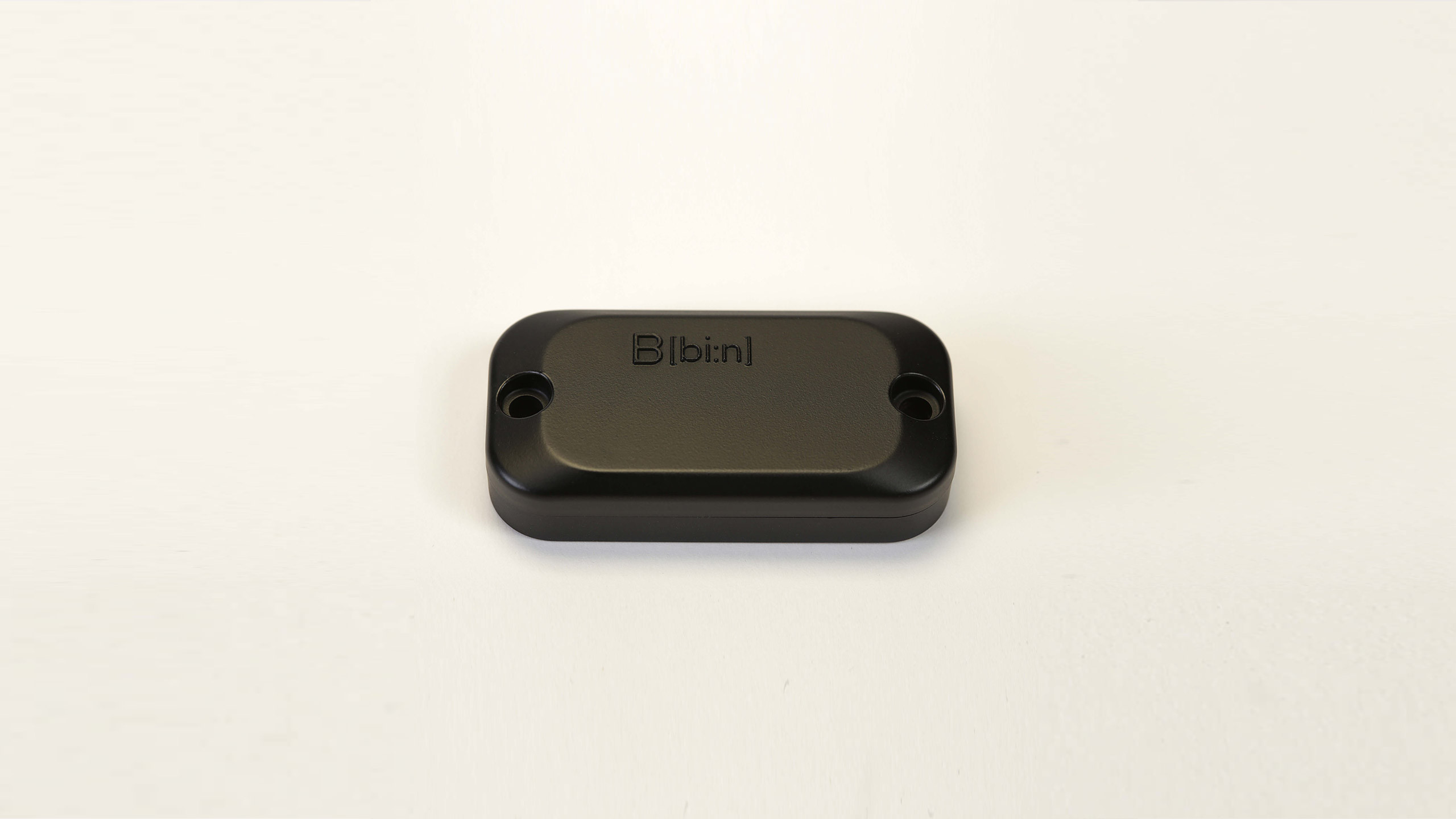

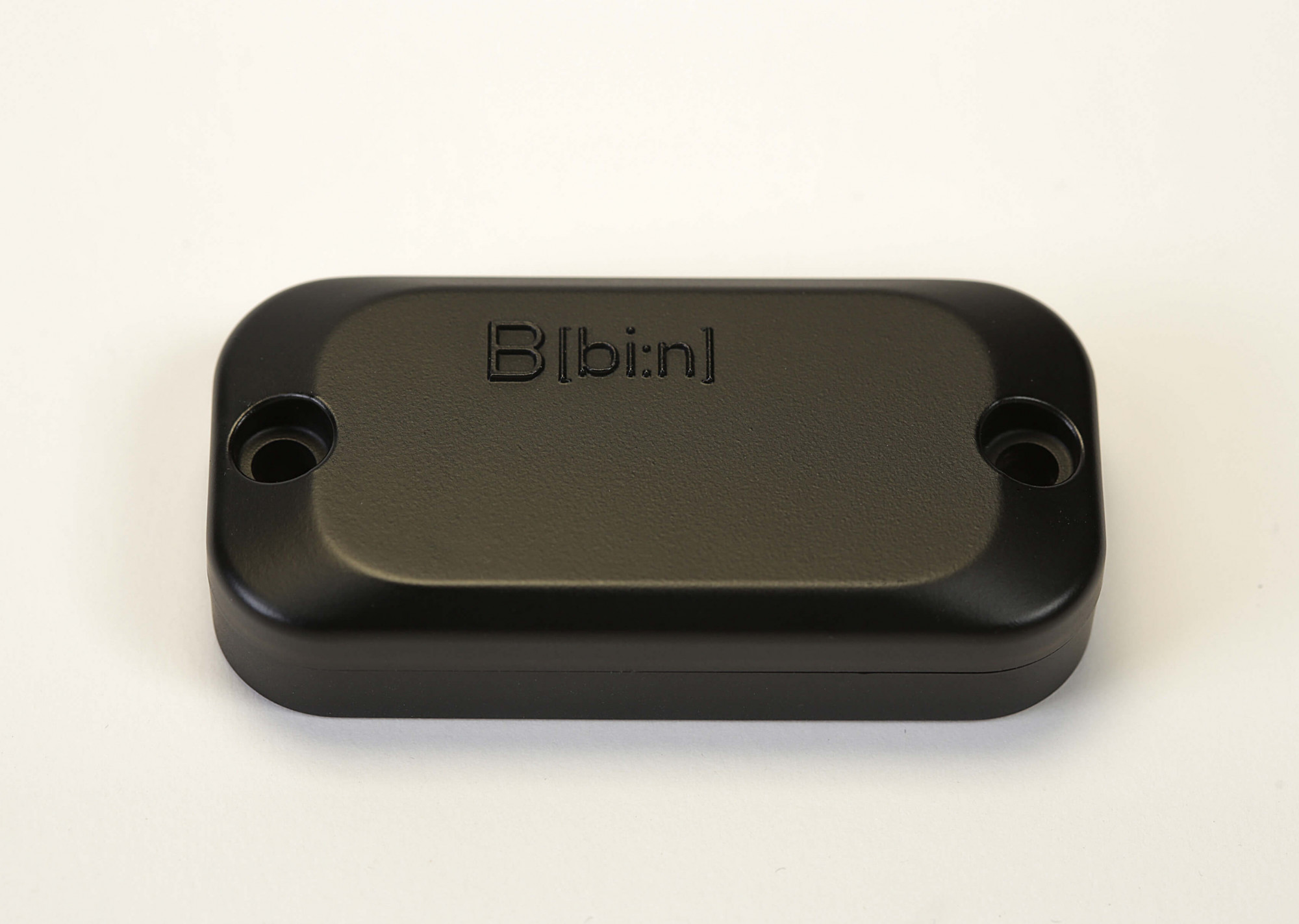

Black[bi:n], the industrial beacon, has been developed in a dustproof, waterproof and chemical resistant construction to suit the harsh industrial environment and can be used for 20 months if the CR2477 1,000mA lithium battery is used to generate signals in 1 second increments.  It can be used for 5 years at 4 seconds’ increments signal interval.


Since Black [bi: n] is designed with waterproof and dustproof structure, it can be used both indoors and outdoors, and it also has a bolt tightening hole for mounting on machinery or equipment.


Product Model Black[bi:n]
Air Interface Bluetooth V4.0 (2.4GHz), iBeacon, Eddystone
Advertising Frequency CH37 2402MHz, CH38 2426MHz, CH39 2408MHz
Transmit Power -18 ~ +8 dBm (8 steps Tx Power adjustment)
RX Sensitivity -92.5dBm
Antennas Chip Antenna
External Interface RS-232C
Power Source +3VDC @ 30uA (CR2450), 1.2 year @ blink 1sec
Environmental Sealing IP67
Operating Temperature -20℃ ~ +50℃
Humidity 5% to 95%, non-condensing
Size 69 x 34 x 15 mm
Weight 25g

Using @

Domestic B company

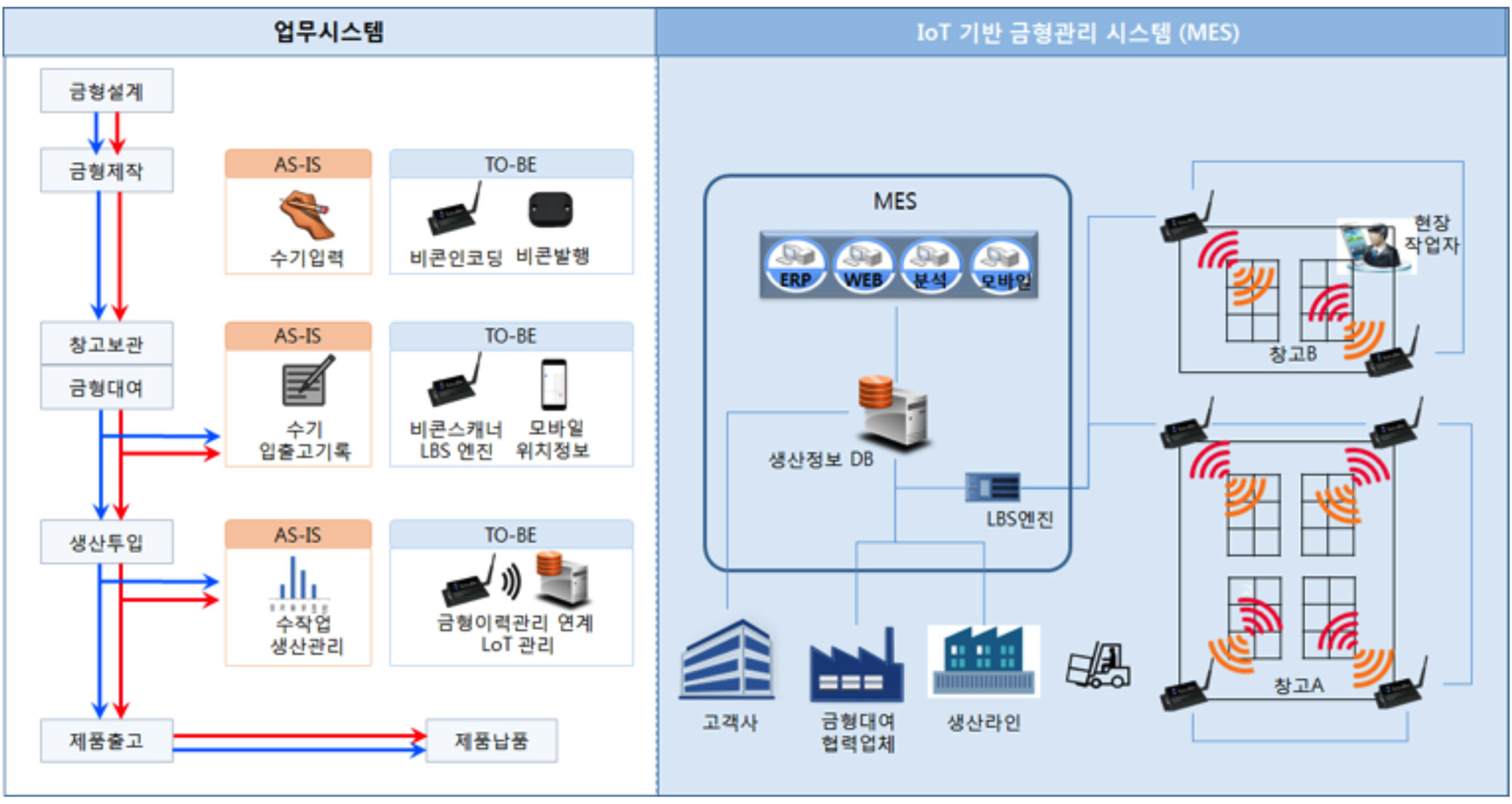

mold history management service

Samsung Heavy Industries

Warehouse Parts Management Service
